Decking Sheets for Cantilever Slabs: Structural Tips and Profile Selection

In modern construction, cantilever slabs allow for design flexibility—balconies, overhangs, sunshades, or slab projections without direct support. But when paired with steel decking sheets, especially in composite slab construction, they require careful consideration to ensure structural safety and formwork integrity.

This guide breaks down how to choose the right steel decking profile (SteelDECK 52, 76, or 102) and the best practices for cantilever slab design, installation, and edge detailing using decking sheets.

🧱 What is a Cantilever Slab?

A cantilever slab is a concrete extension that projects beyond its supporting beam or column without external bracing. It must resist bending moments and downward loads solely by anchoring itself back into the main structure.

When using composite steel decking sheets, these slabs present unique challenges. The deck acts as permanent formwork but doesn’t contribute to structural reinforcement at the cantilevered edge.

🛠️ Role of Steel Decking Sheets in Cantilever Slabs

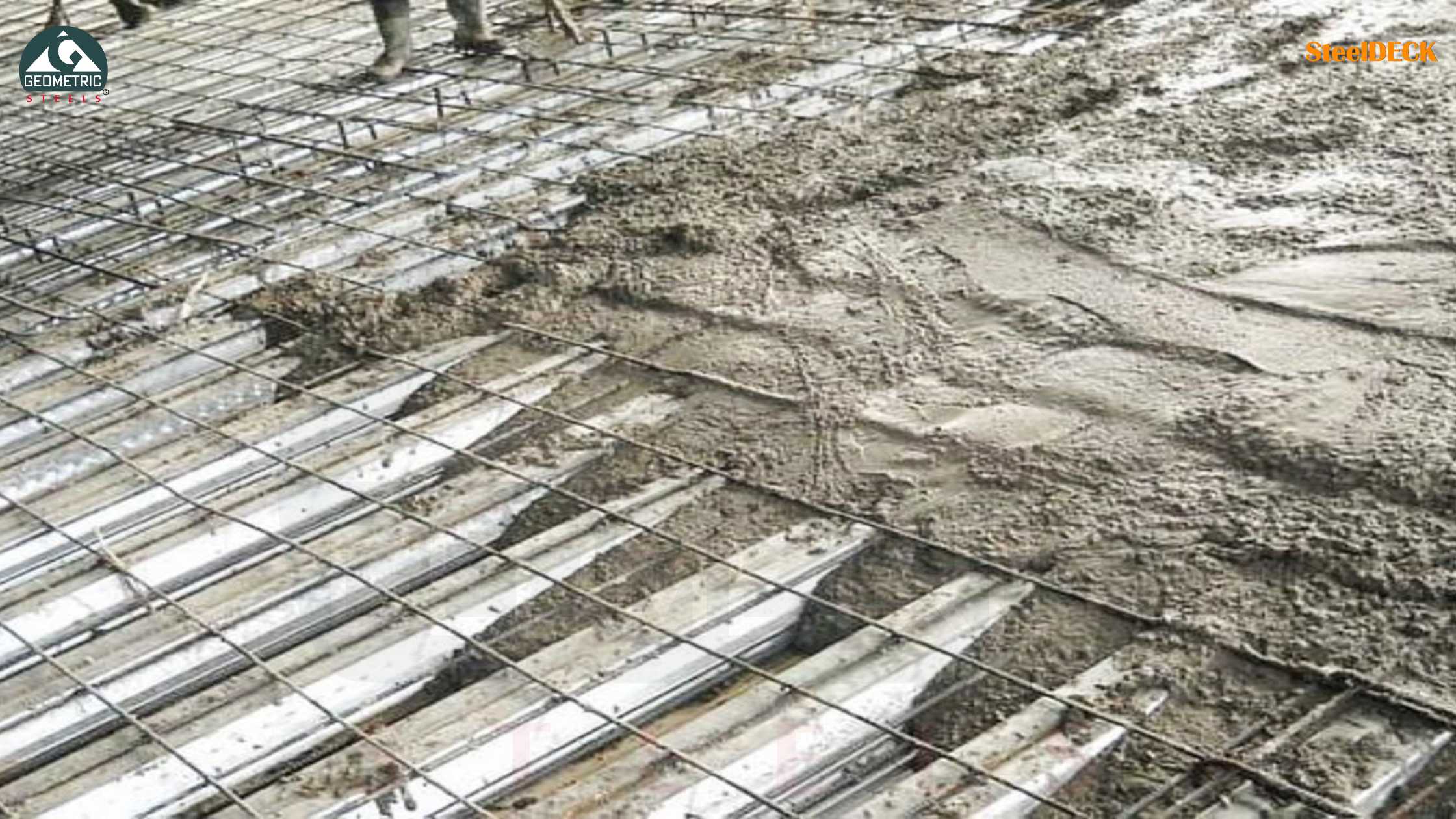

Steel decking sheets serve as stay-in-place shuttering during slab casting. In cantilever zones, however:

• The deck does not act as tensile reinforcement
• It must only carry wet concrete load and construction live loads
• Final strength must come from the slab’s top mesh or rebars

📏 Key Guidelines for Using Steel Decking in Cantilever Slabs

✅ 1. Maximum Cantilever Length with Decking (Perpendicular Span)

If decking sheets run perpendicular to the beam:

• Max cantilever = 450mm from beam face
• 600mm+ requires temporary propping or edge support

⚠️ 2. No Cantilevers with Parallel Decking Span

When decking runs parallel to the support beam, the deck cannot support a cantilever. Use steel edge trims for the slab edge formwork here.

🔧 3. Edge Trim and Mesh Reinforcement Are Critical

For cantilevered zones:

• Deck = formwork only
• Top slab reinforcement = structural load bearing
• Edge trim = fixed securely to decking or rebar

📐 Choosing the Right SteelDECK Profile

Profile	Height	Recommended Use
SteelDECK 52	52mm	Light-duty slabs, minimal overhangs
SteelDECK 76	76mm	Balanced strength and span
SteelDECK 102	102mm	Heavy-duty slabs, long span zones

🧠 Design Considerations: Structural vs Construction Stage

Construction stage: Decking supports concrete and live loads.

Final stage: Strength comes only from embedded reinforcement.

🛑 Site Tips for Safe Cantilever Decking

• Edge protection for overhangs >450mm
• Secure trims to deck or slab mesh
• Use props for spans over 600mm
• Don’t use decking in cantilever zones over pre-studded beams

🏗️ Applications of Cantilever Slabs with Steel Decking

• Balconies and walkways
• Loading platforms and bays
• Architectural projections in PEB or RCC hybrid structures
• Entry overhangs and sunshades

🚀 Cantilever Smarter with the Right Decking Details

Cantilever slabs add function and form—but demand proper detailing. Choose SteelDECK 52/76/102 with clear understanding of span direction, load stages, and reinforcement detailing.
